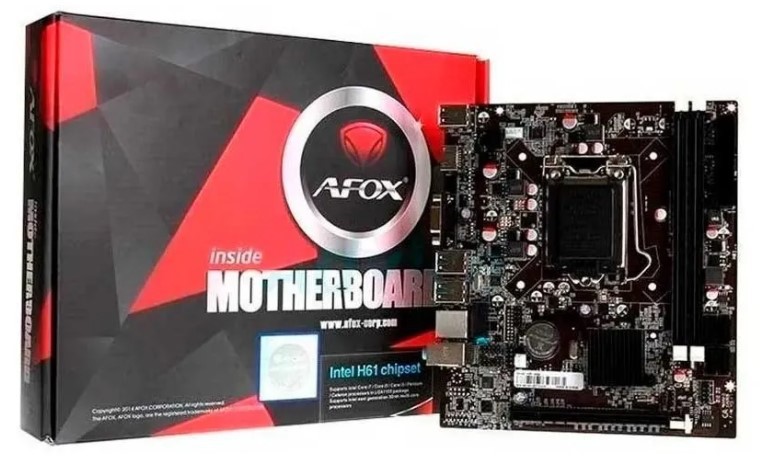

PLACA MÃE AFOX IH61-MA LGA1155 DDR3 VGA / HDMI
Para mais informações entre em contato conosco através do telefone (44) 3029-5654 ou através do Fale Conosco
ESPECIFICAÇÕES TÉCNICAS :
|
Platform |
INTEL® Socket 1155 2ª / 3ª GER. |
|
Model Name |
IH61-MA2 |
|
Chipset |
Intel® H61 |
|
CPU Supports |
Intel Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors (CPU up to 95 watts) |
|
FSB |
1066 / 1333 / 1600MHz |
|
Memory |
Dual Channel DDR3 1066 / 1333 / 1600MHz |
|
Dimm |
2 x Memory Slots (Max. capacity of system memory 16GB) |
|
Onboard Graphics |
Integrated Graphics Processor |
|
PCI/PCI-E Slots |
1 x PCI Express x16 slot 1 x PCI Express x1 slot |
|
SATA |
4 x SATA2 |
|
IDE |
N/A |
|
Audio |
Realtek 662 on board, Supports 6-channel audio-out |
|
LAN |
Realtek RTL8105/8106 10/100Mbps Ethernet on board |
|
Back Panel I/Os |
1 x HDMI Port 1 x D-Sub (VGA) Port 6 x USB 2.0 Ports 1 x RJ-45 LAN Port 3 x HD Audio Jacks (Line in / Front Speaker / Microphone) |
|
ON-Board Pinheaders/Connectors |
2 x USB 2.0 pinheaders (supports additional 4 USB 2.0s) 1 x Front Panel Audio pinheader |
|
BIOS |
UEFI BIOS |
|
Form Factor |
Micro-ATX (17*19cm) |
|
Mounting |
4 mounting holes |
|
Accessories |
1 x SATA II cable 1 x I/O Rear Panel 1 x User Manual 1 x Driver CD |
